IAQ-Office

On April 13, 2026, in filtration, HEPA, IAQ, news, by neil
0

As measurement of indoor air quality (IAQ) parameters have gotten better, faster and cheaper we’ve taken advantage of this to instrument our offices.

Read more to see why everyone should care about IAQ.

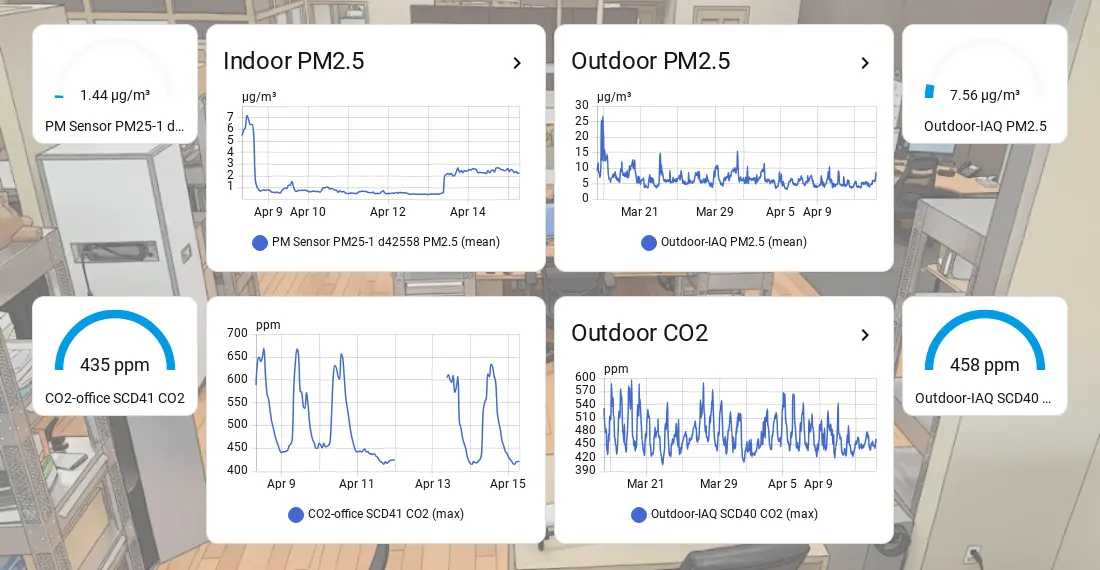

You’re looking at data from our office in Medford, Oregon. The data is sent to our servers every 5 minutes. (refresh page to see newest data)

Carbon Dioxide (CO2):

Particulates:

  • We are measuring PM2.5 which in our case is the weight (micrograms) of particles less than 2.5 microns per cubic meter
  • These small particles (from diesel, smoke, etc) are particularly bad for us because they make their way into our lungs and are hard to expel
  • Kitchen activity (frying, searing, burning fuel) are also big contributors to indoor particulates
  • If you have low levels of particulates, you’re probably cleaning the air of aerosols. Aerosols are the primary vector for air borne viruses (think influenza, colds, covid) https://pmc.ncbi.nlm.nih.gov/articles/PMC8721651/
  • How we fixed our particulate problems
    • MERV13 filters on all outside air coming into ERVs and HRVs
    • MERV13 filters on all air handlers
    • CR style filter boxes situated throughout the building
    • HEPA filtration units
    • Make sure that you have good kitchen exhaust to reduce particulates from cooking

What can you do ?

Footnote on ERVs and HRVs

  • The smart way to fix CO2 problems is to use Energy Recovery Ventilators (ERVs) or Heat Recovery Ventilators (HRVs)
  • You can also just open a window, but this will lead to loss of conditioned air
  • ERVs and HRVs minimize loss of conditioned air by recovering the heat or cool, while still bringing in fresh and filtered air

Note on our measurements

We measure particulates and carbon dioxide levels (inside and outdoors). A thorough analysis of air would include volatile organics (VOC’s) and other pollutants, which is beyond the scope of our measurements. If you have good values for CO2 and particulates, and you don’t live next to an airport or other concentrated pollution source, your other IAQ values will most likely be just fine.

Tagged with: • • • •


To HEPA or not to HEPA – no question !

On January 27, 2021, in news, by neil
0

The following article from the Journal of Occupational and Environmental Hygiene makes a compelling case for adding HEPA filtration to indoor environments in order to greatly reduce the chance of Covid spread.

The article has a couple of important points.

Based on their model, an office worker has a 40% chance of contracting Covid when sharing an office with an infected worker “Even with use of N95 masks in this scenario” after 1 week of exposure !

By combining HEPA filtration (12 Air Change per Hour – 12 ACH), the probability of contracting Covid from the office environment over a 6 month period drops to 0.003%.

Publication Cover

Conclusion: Use HEPA filtration in indoor environments in this time of panemic, and continue to use to avoid other airborne pathogens.

Tagged with: • • • • • • • • • •


Airscape HEPA Tower Air Purifiers : Now Available

On July 22, 2020, in news, by Melanie
0

Arising out of our personal and professional need for high quality portable air filtration during the COVID-19 pandemic, the inspiration and launch of the the newest member of the Airscape family was born.

We noticed an absence of cost effective and high quality portable indoor air filtration products utilizing critical core attributes:

*high number of air exchanges

*quality filtration media: MERV pre-filter and HEPA filtration

*particulate level filtration appropriate for airborne size micro-droplets (i.e. COVID-19, influenza etc.

*quiet operation (suitable for conference rooms during meetings)

*efficient energy utilization (speed controllable, low energy use ECM motor)

We utilize this product in our headquarters and trust it to keep our team safe.

https://www.hvacquick.com/products/residential/Air-Filters/Air-Purifiers/AirScape-HEPA-Tower-Air-Purifier

Tagged with: • •


Dental Treatment Room (Operatory) Aerosol Removal Part II

On May 4, 2020, in covid, dental, filtration, IAQ, by neil
0

The best way to remove aerosols created by dental procedures is to create a stream of air focused close to the source. Source capture as it’s known is more efficient since we’re pulling a concentrated source of contaminants. Each unit of air that you are paying for “works harder” in this manner.

From this point, there are 2 choices: exhaust the air, or recirculate it. Here’s a list of pros/cons for each system.

PROCON
ExhaustNo worries about viral and other contaminants being spread inside
Exhausts conditioned air
Requires Installation
Very Quiet
Can be designed with lots of airflow to provide a purge between patients
RecirculationRequires expensive HEPA filters
More expensive
No Installation Required

The system shown below exhausts to the outdoors.

Typical Aerosol Exhaust System Installed in Attic or Interstitial Space (click image to expand)

Let’s go through the parts starting from the intake (left to right):

  • Intake cone: A plastic cone to pull aerosol from around the patient’s mouth
  • Self supporting flex duct: Typically a 4″ diameter flexible duct that “self supports” – holds its last position
  • Thimble: This is just a neat way to allow the inside duct to be removed and cleaned without system disassembly
  • Flexible insulated duct: This duct has a plastic liner and can be easily installed
  • Filter box: The CFB-6-OS contains a prefilter and a MERV15 filter. Even though we’re exhausting outdoors, it’s good practice to remove most of the particulates. The MERV15 filter is in the range of a N95 face mask.
  • Inline fan: We really like this powerful fan that is capable of high static pressure (sucking ability) and high flow (CFM or cubic feet per minute). The fan can be adjusted for flow for two modes: a) Patient aerosol removal b) Room purge between patients [VERY USEFUL AND PROBABLY WILL BE CODE MANDATED]

References

More Information

Tagged with: • • • • • •


Dental Treatment Room (Operatory) Aerosol Removal Part I

On May 4, 2020, in covid, dental, filtration, IAQ, by Melanie
0

There is an invisible problem in the dental profession which has the potential to be harmful to medical professionals, patients, office staff and family members. Indoor air within dental offices may contain unhealthy and infectious airborne particulate resulting from transmittable bacteria and viruses. Dental offices are high traffic, publicly accessible, commercial spaces and the multiple daily interactions between patients and staff, can introduce bacterial, viral and fungal infections into the air. Ultrasonic instruments, along with the constant cleaning and disinfection of contact surfaces can create bio-aerosols which contaminate the indoor air and degrade the air quality of air in a dental office.

Risk vs. Income — Looks at Dentists !
(courtesy https://www.visualcapitalist.com — click image to expand)


Indoor air quality contamination has been a known concern for many years, especially within hospital and dental manufacturer’s environments. Operating rooms of all hospitals and surgery centers have a cooler and filtered positive air flow within each surgical suite. Manufacturers of surgically implanted hardware (orthopedic) and dental implants have source capture devices on their equipment and “Clean Rooms” as part of the final sterilization process to preserve the surfaces of the implants before packaging. The manufacturers of these products invest heavily in the design of air quality controls to ensure they meet industry, regulatory and governmental standards and to protect their staff and the end user of their final product.


Source capture of dental bio-aerosols effectively collects airborne contaminants that are often present in dental offices; including such as oral aerosols, ultra-fine particles, disinfectant odors, mercury vapor, drill aerosols and abrasion powder and provide an added layer of safety by improving air quality in the immediate vicinity of interaction between individuals. This “source capture” feature helps protect doctors, dental technicians and patients alike.


During a regular dental visit, patients and providers are exposed to bio-aerosols which can originate from contaminated patient care items. In dental offices, the oral cavity constitutes the highest reservoir of infectious organisms with over 350 different types of bacteria. During dental treatments, the use of high and low speed instruments drilling into teeth, bones and tissues create hazardous bio-aerosols. Aerosols containing microbes from the saliva, blood, and sub-gingival fluids are dispersed in the air. The dispersal of fine droplets, which may contain pathogens, can stay airborne for hours. These pathogens are easily inhaled and become a potential source of infection for everyone within the dental office. The amount of time these droplets remain suspended in the air, how far they travel, and their level of contamination should be a concern for everyone, and especially when treating highly vulnerable patients – children, pregnant women, older people, and patients with COVID specific co-morbidity factors, hypertension, obesity, COPD.


A typical dental office can see 40-50 patients in a day. These patients are another source of air pollution from the tiny particulates of skin which that are continually exfoliated from the skin. Researchers believe that the majority of Staphylococcus aureus, one of the leading causes of infection, is transported mainly on these shed skin particles, readily disturbed from floors and other surfaces as microscopic specks of dust which thousands of pathogens use as a transmission vehicle.

Despite the SARS (Severe Acute Respiratory Syndrome) and MRSA (Multi-Resistant Staphylococcus Aureus) epidemics which profoundly affected healthcare mortality and infection rates, concrete actions to prevent the spread of aerobiological viral and bacterial infections have not been taken.

The Occupational Safety and Health Administration (OSHA) mandates that every employer, including medical and dental offices, has a general duty to protect employees. OSHA industrial hygiene includes references to ventilation and replacement air for the protection of the workers. There should be adequate ventilation by either natural or mechanical means, in order that the atmosphere does not endanger the health and safety of workers. The replacement air shall be free from contamination with any hazardous dust, vapor, smoke, fumes, mist or gas. The discharge of air from any exhaust system shall be in such a manner so as to prevent the return of contaminants into any workplace.


Microbial air pollution is a health hazard and source capture filtration units can play a role in significantly reducing the transmittable bio-aerosols. In many medical and dental office environments, the most practical and convenient solution is to have source capture systems.

References

More Information

Tagged with: • • • • •


New Filtration Products Part 1

On July 24, 2018, in cool products, IAQ, by neil
0

Over the past 2 years we’ve been building filtration products, so maybe it’s time to announce them…

The first unit we have is our IFB series. This “Inline Filter Box” has a MERV6 filter and is meant for general purpose filtration.  MERV6 is considered a “better residential” level of filtration. [Here’s a good overview of MERV levels]

HVACQuick IFB Series Inline Filter Boxes

This filter box is commonly used for filtering incoming fresh air to a furnace or air handling unit. If desired, we can provide inline fans all the way from 100 CFM past 1200 CFM.
