Exterior terminations represent a frequent failure point in high-performance ventilation systems. Standard stamped metal or molded plastic hoods regularly introduce excessive resistance, altering fan performance curves, increasing noise levels, and escalating mechanical wear. For commercial projects and high-efficiency residential systems, mitigating pressure drop at the building envelope requires precision geometry and durable materials.

Seiho’s product lines are engineered to maintain low system static pressure while ensuring robust weather defense and long-term durability.

Aerodynamic Architecture and Static Pressure Metrics

Standard commercial architectural specifications demand precise performance metrics to safeguard fan motors and maintain targeted volumetric airflow (CFM). Seiho wall terminations resolve this by maximizing free area and optimizing air velocity pathways.

Versatile Applications

Seiho engineered terminations are tailored for distinct mechanical applications, offering specialized configurations for general exhaust/intake (standard vent caps) and lint-safe configurations for dedicated dryer exhaust. Models are available in multiple dimensions to match system requirements (values in parentheses indicate Net Free Area)

Vent Caps

Seiho vent caps are perfect for any venting applications such as storage rooms, attics, basements, and bathroom / kitchen exhausts.

---

Dryer Vents

Seiho dryer vents feature larger openings to reduce clogging, or backdraft / backdraft flapper dampers that prevent outside air from back-drafting into the house through the dryer. While designed for dryer exhaust, they also work great for bathroom or kitchen exhaust venting.

---

Vent Selection with Free Area Velocity and Pressure Drop Calculations

The Seiho SFX series is engineered to operate efficiently up to a maximum recommended free area velocity of 750 FPM. At this threshold, the static pressure drop is limited to just 0.09 in. w.g., preventing the system choking common with standard hardware. To determine the minimum required size for your exhaust or intake line, apply the standard manufacturer-approved formula:

Material Durability and Mechanical Features

The longevity of a building’s envelope depends heavily on the materials anchoring its terminations. Inferior exterior caps suffer from UV degradation, environmental stress cracking, and atmospheric oxidation.

Functional Engineering Elements

• Integrated Moisture Mitigation: Each louvered assembly includes a built-in water condensation drain channel. This feature forces moisture outward, keeping it out of the ductwork.
• Pest Control: The SFX-N and SFX-SN sub-models can be configured with integrated stainless steel insect screens, blocking pest entry without creating an excessive restriction in the airflow path.
• Low-Mass Flapper Dampers: The SFZC and SFB lines implement low-resistance backdraft flapper dampers. These dampers open fully under active static pressure from bathroom fans or dryers, yet close tightly when the system is idle to halt wind penetration or cold air infiltration.

Friction-Fit Mechanical Mounting

Seiho terminations utilize a fastener-free installation system. The rear neck of the assembly features heavy-duty, factory-mounted friction-fit spring clips. The installation sequence requires only four steps:

1. Verify the round rigid ducting or wall sleeve is cut flush with the exterior substrate.
2. Apply a sufficient amount of high-grade silicone caulk around the neck of the vent.
3. Align the termination and press firmly to compress the caulk for a good seal at the duct.
4. Apply caulk around the outside edge of the vent to create a weather-tight seal against the building facade. Wipe off any excess. The vent openings must be positioned at the bottom.

Because the unit is retained via spring clip friction and caulking, the vent caps can be easily pulled completely out of the duct for line inspection and lint clearing.

Engineering Meets Logistics

Ultimately, optimizing a mechanical system requires matching premium components with a reliable supply chain. Seiho provides the precision geometry needed to protect fan performance. By maximizing Net Free Area and utilizing architectural-grade materials, these terminations eliminate the excessive resistance common in standard hardware. To ensure these solutions reach the job site without delay, HVACquick maintains deep stock across the entire Seiho lineup alongside matching fans, louvers, and dampers to complete any commercial or residential venting array.

At HVACQuick, we understand that effective air movement in commercial and industrial builds isn’t just about comfort, it’s about compliance, safety, and efficiency. When your project requires specialized tech for demanding specs, you need equipment that won’t quit.

That’s why we are a proud supplier of Canarm. From heavy-duty industrial wall exhausters to explosion-proof fans, Canarm engineers robust solutions for the toughest ventilation challenges.

Precision Air Movement

Camarm’s engineering prowess shines through in specialized solutions for specific needs:

Blowers and Utility Sets

When you need to move air against resistance or within a ducted system, Canarm’s blowers and utility sets (400, 600, BI, KE, PW) deliver. These robust units are essential for process ventilation, material handling, and ensuring consistent airflow in complex systems.

Duct Blowers & Tube Axial Duct Fans

For seamless integration into your existing ductwork, Canarm offers powerful duct blowers (200, 9200, IDB) and highly efficient tube axial fans (BTA, DDA, HTA, WTA). These are ideal for applications requiring focused air movement within a confined space, from industrial exhaust to air recirculation.

Makeup and Supply Air Fans

Maintaining balanced air pressure and introducing fresh, conditioned air is vital. Canarm’s makeup and supply air fans (700DD, SISDD) are engineered to prevent negative pressure issues, ensuring healthy indoor environments and optimal performance for other exhaust systems.

Exhausting the Unwanted

From general ventilation to hazardous environments, Canarm has your exhaust needs covered.

Direct Driven Propeller Fans

Known for their straightforward, efficient operation, Canarm’s direct drive propeller fans (AX, GSF, P, SD, XFS) are workhorses for general ventilation, moving large volumes of air in warehouses, workshops, and agricultural buildings.

Sidewall Exhaust Fans

A classic and effective solution, Canarm’s sidewall exhaust fans (ADD, HVA, HV, XB) are designed for easy installation and powerful exhaust, making them ideal for a wide range of commercial and industrial settings.

Rooftop Exhausters (Downblast & Upblast)

For comprehensive building ventilation, Canarm offers both downblast and upblast rooftop exhausters. Downblast (300DD, ALX-DB, ALX-DD) units are perfect for general exhaust, while upblast models (ALX-UB, RB, RD, RTA) are crucial for venting contaminated, hot, or greasy air away from the roof and equipment, often found in commercial kitchens.

Food Truck Exhaust Fans

Canarm meets the unique and stringent demands of a mobile kitchen, offering a specialized upblast exhauster (ALX-UD) designed to handle the greases-laden air and high temperatures, ensuring compliance and safety for your culinary operations on the go.

Commercial Bath Exhaust & Ceiling Mounted Bath Fans

Don’t underestimate the importance of proper humidity and odor control in commercial restrooms. Canarm provides specialized commercial bath exhaust systems (BPT, CEPD, CEP) and discrete ceiling mounted bath fans to ensure a fresh, comfortable environment for occupants.

Safety and Specialization

When standard isn’t enough, Canarm excels in providing solutions for critical applications.

Explosion Proof Fans

In environments where flammable gases, vapors, or dust are present, safety is paramount. Canram’s explosion proof fans (AX, P, SD) are meticulously engineered and certified to operate safely in hazardous locations, preventing ignition and protecting personnel and property.

HEPA Filtration

For environments demanding the highest air purity, Canarm’s HEPA filtration units (HFB) integrate seamlessly into your HVAC system, capturing microscopic particles, allergens, and contaminants to deliver exceptionally clean air, vital for healthcare, laboratories, and sensitive manufacturing.

Comfort and Efficiency

Canarm’s solutions also enhance comfort and contribute to energy savings.

Ceiling Fans

More than just residential comforts, Canarm’s industrial-grade ceiling fans (FANBOS) are powerful tools for destratification and general air circulation in large commercial and industrial spaces. They help distribute heated or cooled air more evenly, leading to significant energy savings year-round.

---

Your expert Canarm engineering partner

Getting static pressure calculations, CFM specs, or hazardous location ratings wrong can stall a project or result in equipment failure. That’s why we ensure your Canarm equipment is specified perfectly from the start. Our support team is readily available by phone or email to help you calculate specs, verify dimensions, and ensure you get the exact Canarm configuration your project requires.

Dayus is the fastest, most reliable source of high-end aluminum registers, grilles, and louvers in the HVAC industry.

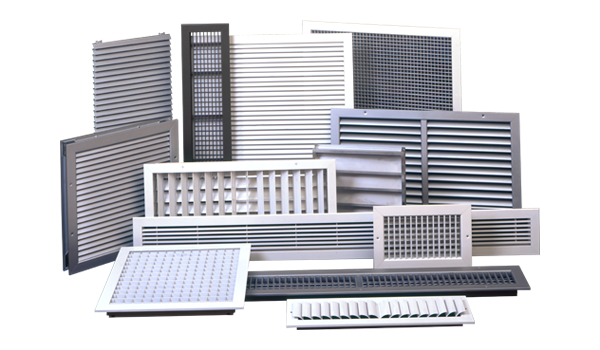

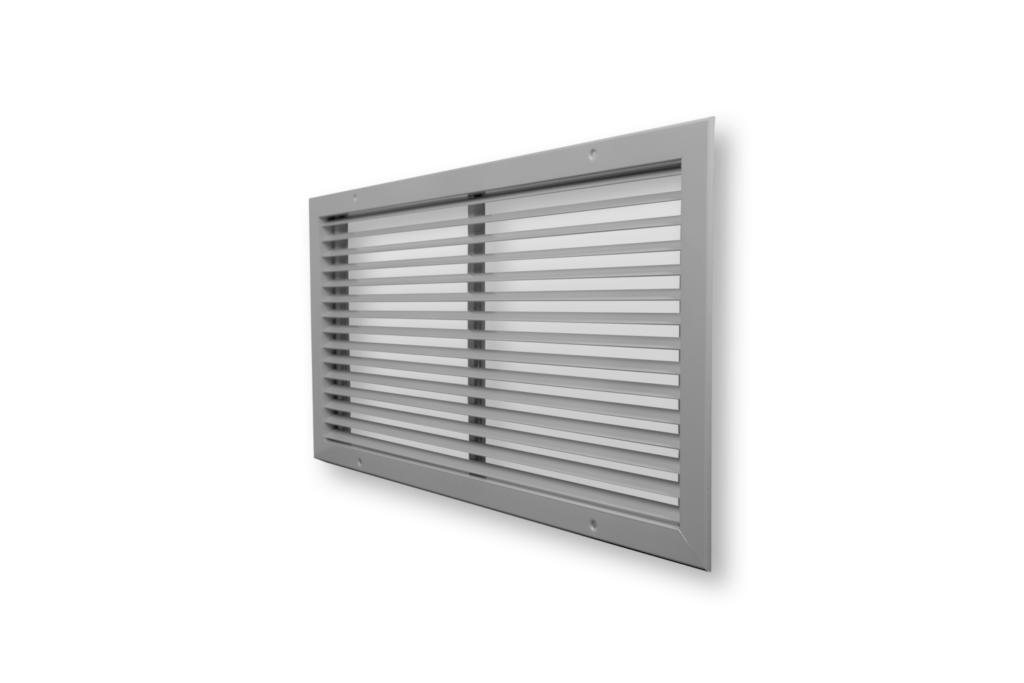

Your projects deserve better than cheap builder-grade vents. Dayus crafts premium, architectural-grade aluminum registers and grilles that transform an everyday eyesore into a flawless design feature. Exceptionally durable, beautifully powder-coated, and engineered for quiet comfort, Dayus products give homeowners the lasting luxury they want, and give contractors a hassle-free installation backed by an incredible 3-Day Quick Ship optional production choice on custom sizes. It’s the ultimate upgrade for clients, and the ultimate timeline-saver for your business.

See our full selection of Dayus Products

From standard finishes such as white, silver, brown, and raw unpainted aluminum, to select powder coat finishes such as flat black, grey, light tan, and gloss black, Dayus eliminates the restriction of standard “appliance white” vents.

Dayus Color Chart

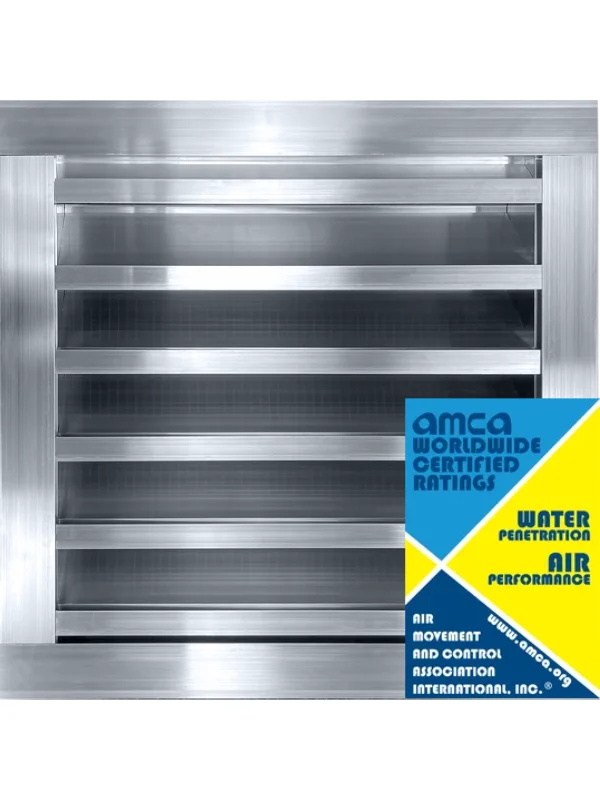

Dayus bridges the gap between premium architectural design and job-site reality. For homeowners, they transform an overlooked mechanical necessity into a sleek, high-end design feature, offering rust-proof longevity, rattle-free engineering, and an endless array of custom colors. For contractors, Dayus eliminates the logistical nightmare traditionally tied to custom orders, backing their premium line with an unmatched 3-Day Quick Ship production option and performance certifications like AMCA.

When a project demands custom sizes and high-end finishes without blowing past deadlines, Dayus stands out as the industry benchmark where quality and speed finally coexist.

Find Dayus now on HVACquick.com
